How much wire goes into the audio video system of a world class theatre?

Carl Lukings • May 25, 2020

Even with the proliferation of wireless systems, our entire industry runs on wire.



Miles, or should I say kilometres of wire. But the truth is that we use a lot less than we used to. Back in the 1980’s we didn’t have digital audio snakes or DMX cables for lighting. And every video line was a coax cable or multiple coax bound together. A simple audio snake could be an inch in diameter for just a couple dozen channels. But that was then. We’ve come a long way in the last 30-40 years, but we still run a lot of wire. It’s just different now.


So, how much wire does go into a world class theatre?

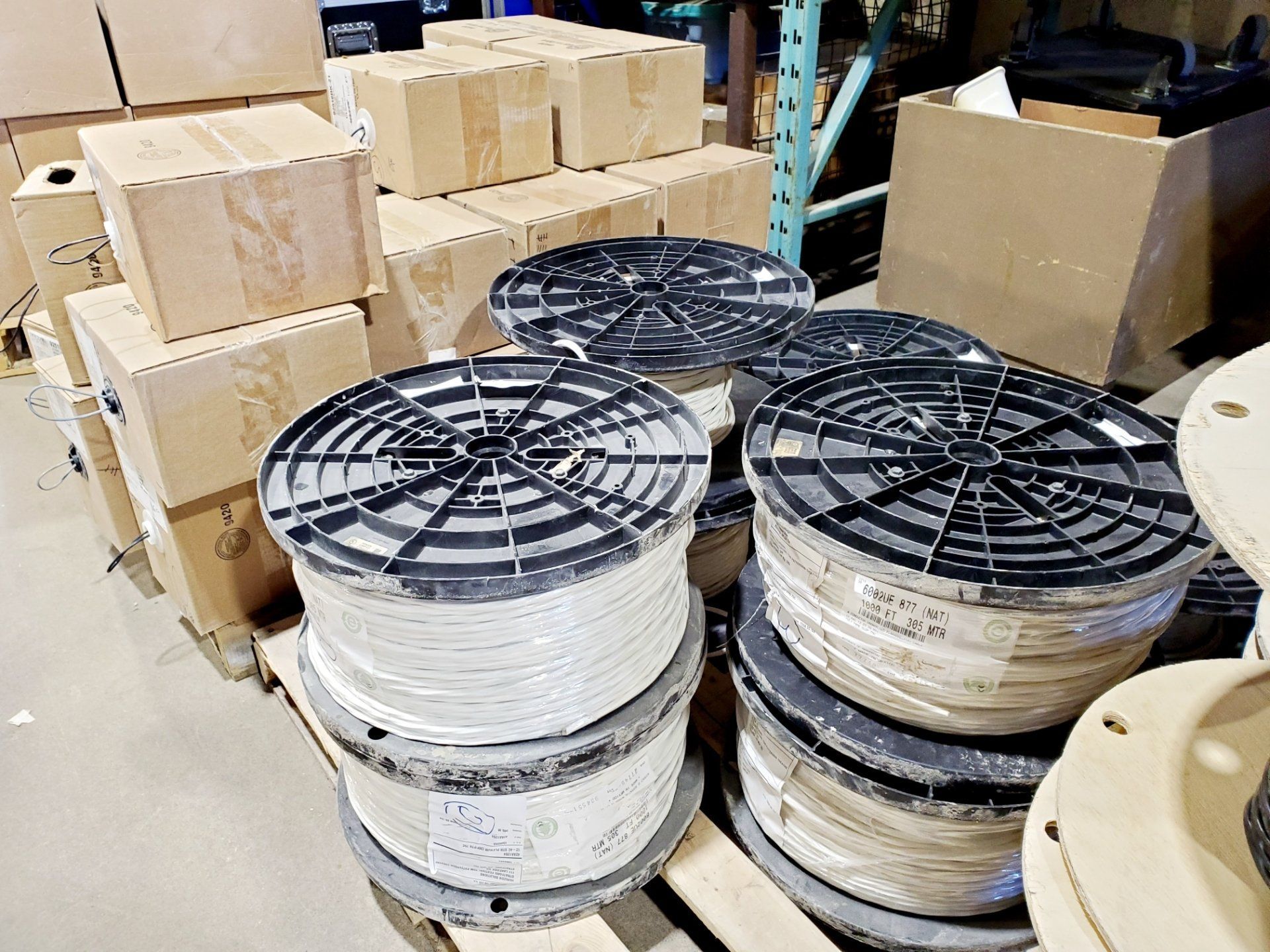

For the last six months Horizon Solutions’ crew has been pulling wire into the new Tom Patterson Theatre in Stratford, Ontario to support the new Audio and Video systems. There is a lot of wire there.


To be clear this wire does not include the lighting systems, nor does it include the cables that plug from plates into the pieces of equipment. Those are a completely different story.

3G SDI Video Lines 12,527 Meters
Intercom Lines 6,035 Meters
Network Lines for Various AV needs 25,663 Meters
Antenna Wire (COAX) 274 Meters
Speaker Wire (12/4 & 10/2) 7,223 Meters
Speaker Wire 70V Systems 6,583 Meters
Fibre Optic Lines for Video & Audio 6,787 Meters

Over 65 KM of wire!

The infrastructure at the Tom Patterson Theatre will allow the directors and technicians ultimate flexibility in how they use their system.


If you’re interested in learning more about how Horizon Solutions can help you utilize the latest digital technologies for audio, video and lighting transport and control we can help.


We can help you cut down on the wires you’ve got running throughout your building and help you build a stronger more robust system that can serve you for years to come.
